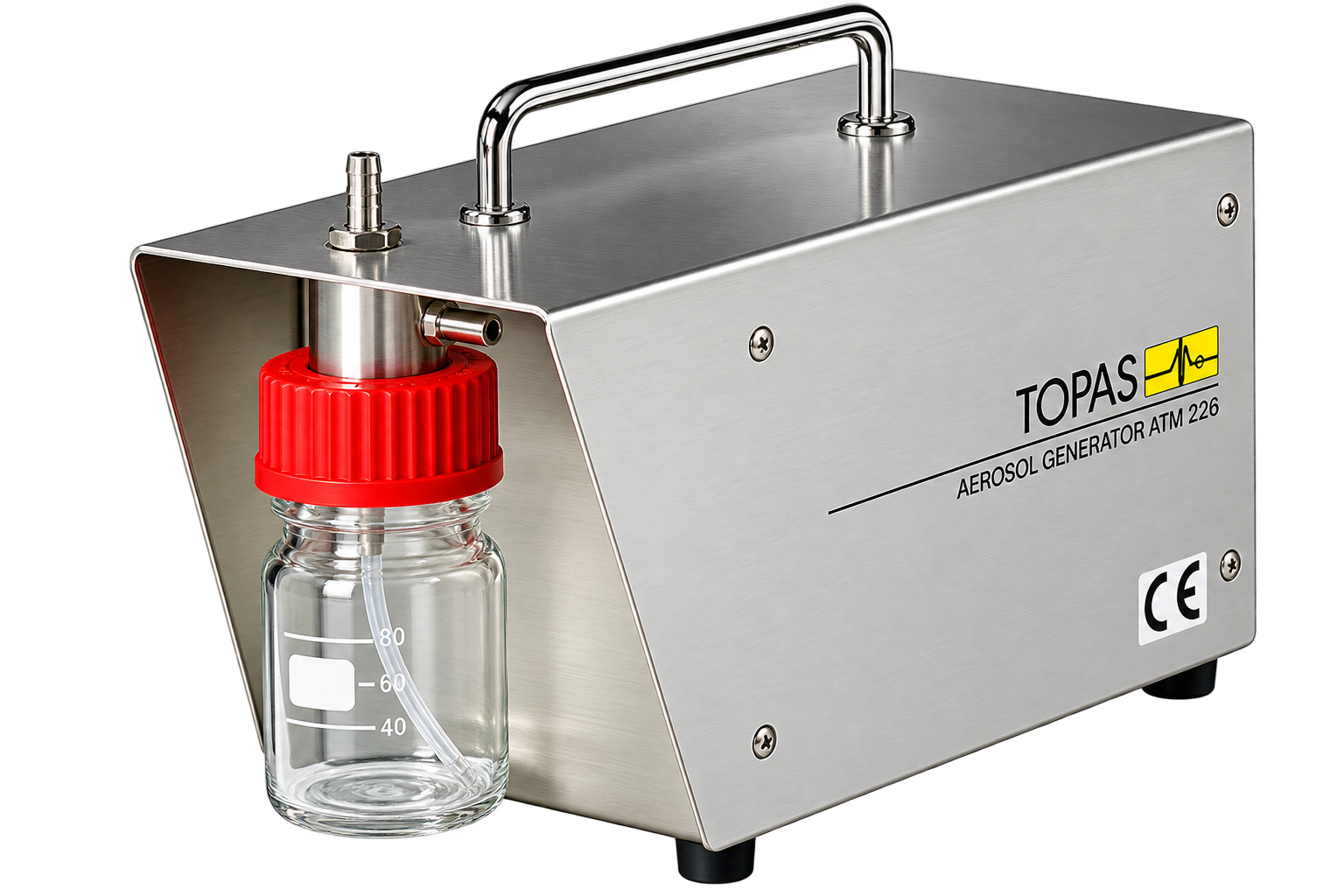

The Atomizer Aerosol Generator ATM 226 is especially suited for clean room and filter testing applications according to international standards.
Compact stainless steel housing – easy-to-clean
Higher mass output
Direct connection with mains supply 100..240VAC
Function test at laminar flow boxes (DIN EN 12469) and cytostatica safety workbenches (DIN 12980), the qualitative test of filters for suspended matter (HEPA and ULPA filters), and acceptance measurements in clean rooms (according to DIN ISO 14644 and VDI 2083) are a essential necessity for personal security and product safety.
Such measurements and checkouts need a suitable test aerosol. Therefore VDI-directive 3491 proposes an aerosol generator for producing a test aerosol with defined characteristics, like the ATM 226. By high generated particle numbers at a particle size distribution orientated at the Most Penetration Particle Size (MPPS) of the filter the locating of leaks in the system is fast and safe. If an oily aerosol substance is used (e.g. DOP, DEHS) the aerosol generator produces spherical particles in the size range 0.1-0.5µm with a calculable residence time.
Applications
Testing of HEPA and ULPA filter media acceptance
Acceptance measurements of clean rooms and safety cabinets
