Aerosol Solutions

High performance aerosol generators and dilutors for cleanroom monitoring and validation

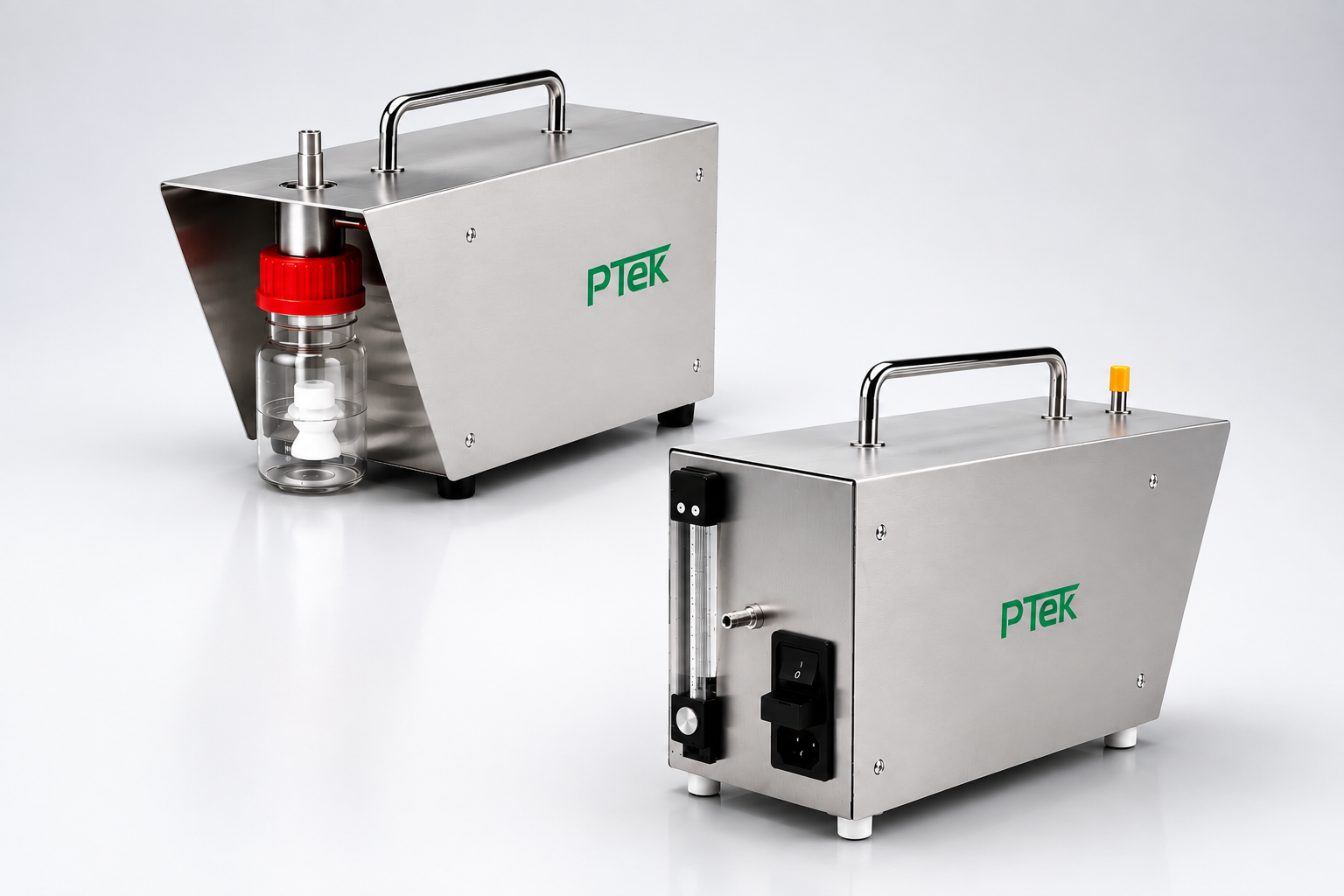

AEROSOL GENERATOR

PAG 26L

SPECIFICATIONS

  • Built-in compressor
  • Compact Stainless Steel Housing suitable for clean rooms
  • High particle number concentration
  • Counter Pressure: 200 mbar
  • Liquid filling volume: 80 ml
  • Flow rate: 70 – 300 l/hr
  • 220VAC/50 Hz mains power rating
  • Aerosol Materials: DEHS, PAO, Salt Solutions, PSL
  • Hose connector: 10 mm OD

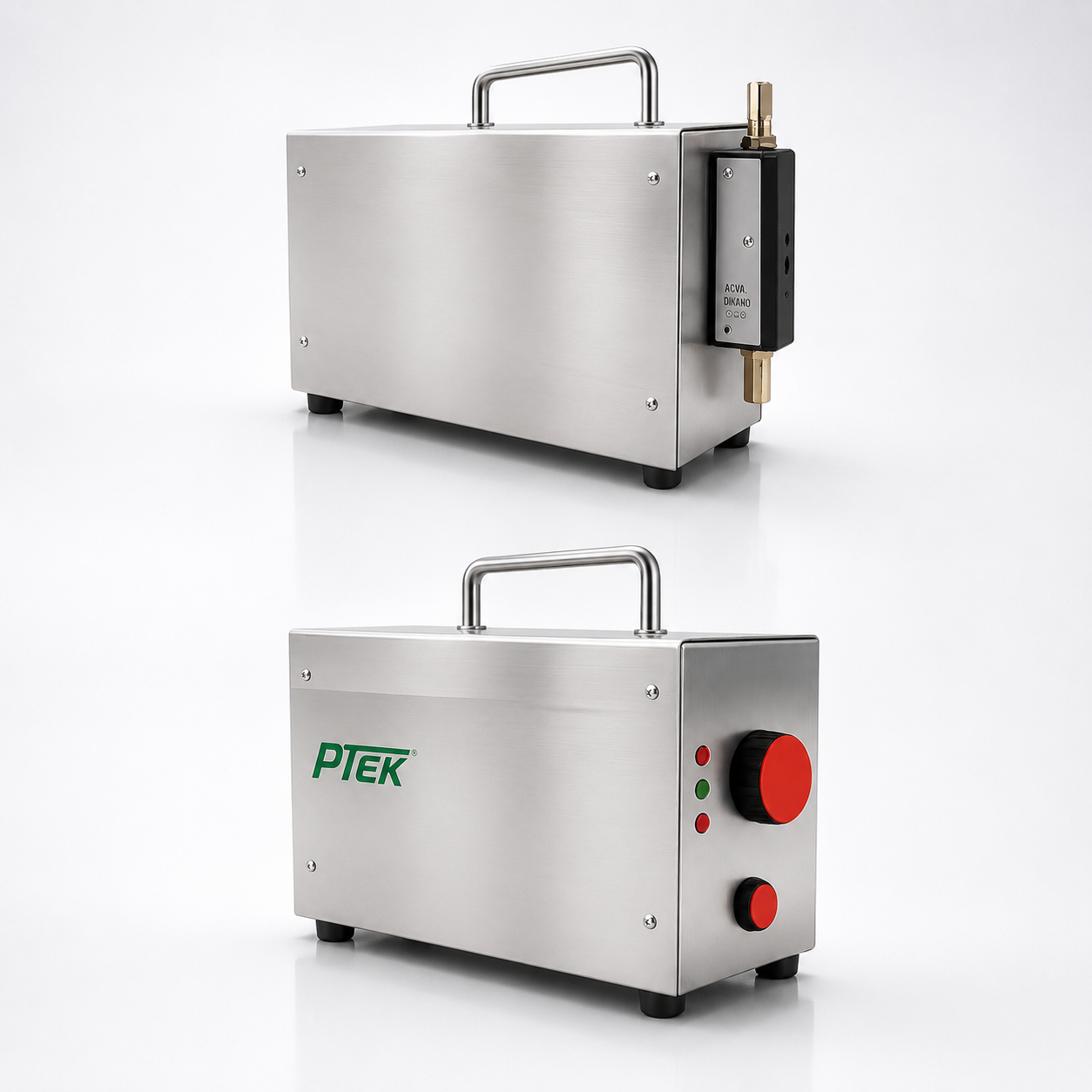

AEROSOL DILUTOR

PDI 26B

SPECIFICATIONS

  • Volume flow rate: (28,3; 50; 56,6) L/min
  • Dilution factor : 1:100 or 1:10
  • Operational adjustment: manual (handwheel)
  • Connector: 10 mm (outer diameter)
  • Power supply 9 V battery
  • Dimensions (w × h × d) 120 × 195 × 300 mm
  • weight: 3 kg
  • Standards complied: ISO 14644-3, GMP Annex 1,
  • DIN 1946-1, ISO/CD 19676
  • Accessories: Anti-Static Tubing

Need Help Choosing the Right Solution ?

Our experts are ready to assist you

Contact our experts
